    Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet

    Ask Lasest Price
    Brand Name : Chint
    Model Number : XL-21, JXF, GGD
    Certification : CE
    Price : USD20~USD200
    Payment Terms : T/T, Western Union
    Supply Ability : 300pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet

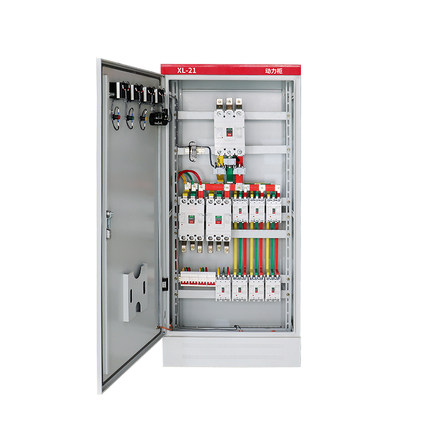

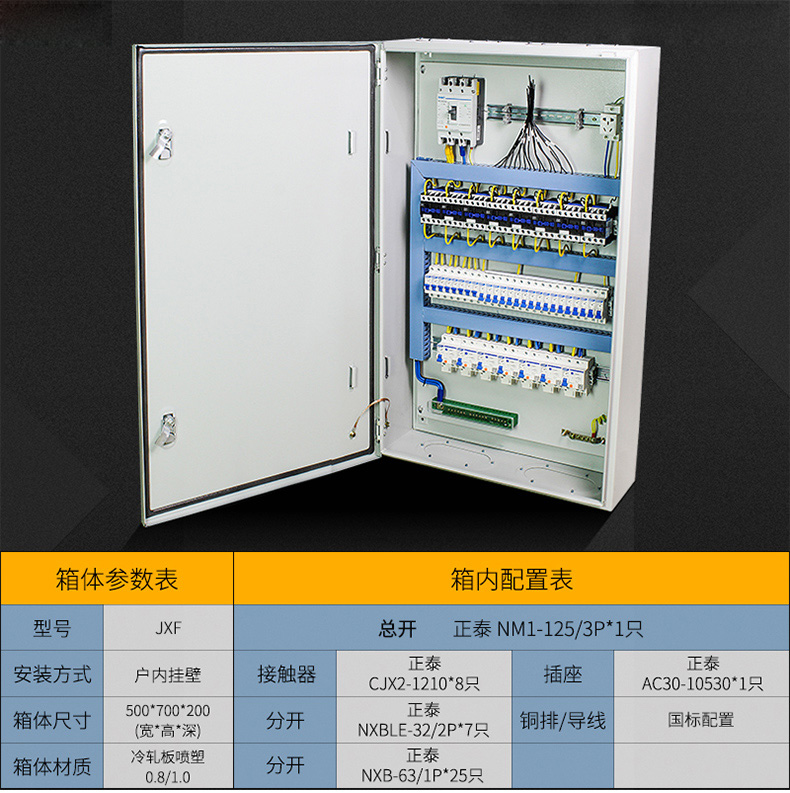

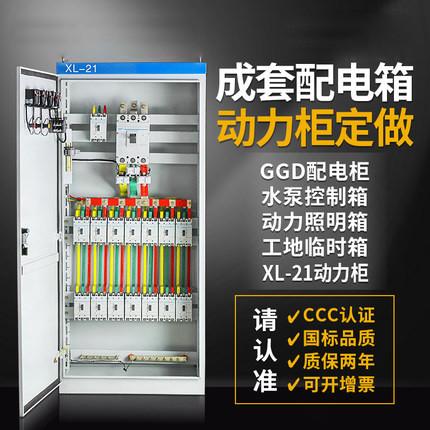

    XL21 Chint Motor Control Center JXF Enclosure in Sheet Steel for Power Distribution or Water Pump Control Cabinet

    Panel Building Services for Electrical Installation and Distribution


    General


    Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation.


    Outdoors integrated distribution box - JP series is designed according to reformation requirements and operational experience of gird construction, based on the principle of security, economic, reasonable and reliable. It is a new type outdoors integrated distribution box with functions of power distribution, controlling, protection, reactive power compensation, power metering. At the same time the electric leakage protection can be added according to users' requirements. The product has several benefits: novel structure, reasonable, high protection grade, convenient installation, debugging, maintenance and repair, etc. The product conforms to standard GB7251.1-1997, and passed 3C certification. It is the ideal low-voltage apparatus in reformation of power grids. Outdoors integrated distribution box - JP series is suitable for 0.4 kV voltage grade of power distribution, metering , protection and automatic reactive power compensation.


    Technical Data


    Manufacturing ProcessLaser cutting,stamping, deep stamping,bending, punching, threading,welding, polishing,tapping,riveting,assembly.
    MaterialStainless steel, carbon steel,copper,aluminium, brass, iron, and bronze (according to customer's requirements)
    Surface TreatmentGalvanized(zinc-plated, nickel-plated,chrome-plated,silver-plated),
    powder coating, polishing(mirror polishing, electrolytic polishing),
    brushing,sand blasting,chemical etching,passivation treatment, etc.
    Tolerance+/-0.01mm
    PackagePlastic film+harden carton box+plywood case
    ApplicationAuto parts,Food Machinery,medical testing and equipment, electronic products, electric appliance,power switches, miniature switches,A/V equipment.
    Quality ControlConducted by ISO9001
    Drawing File FormatSolidworks,Pro/E,,Auto CAD,PDF
    Features1.Customized Design
    2.Small Order Allowed
    3.Sample Product Available
    4.Competitive Price due to factory direct supply
    InspectionIQC,PQC,FQC,OQA
