    Thermal Magnetic 1P 2P 3P 4P Mcb Circuit Breaker NC100 125A 10kA D Curve

    Ask Lasest Price
    Brand Name : Fenigal/OEM
    Model Number : FGD47-100
    Certification : CCC, CE, GS etc.
    Price : Negotiate
    Payment Terms : T/T, Western Union
    Supply Ability : 200,000 pcs/month
    Delivery Time : 2~15days
    • Product Details
    • Company Profile

    Thermal Magnetic 1P 2P 3P 4P Mcb Circuit Breaker NC100 125A 10kA D Curve

    thermal magnetic mcb circuit breaker 1P 2P 3P 4P NC100 125A 10kA D Curve 230V/400V IEC60947


    FGD47-100 series Miniature Circuit Breaker is nice in appearance, reasonable in structure, sound in featureand high in breaking capacity. Installed with standard DIN rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 240V/415V, and rated current to 100A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.

    It complies with standard of GB10963 and IEC/EN60898.

    Frame class100A
    Rated working voltage240V/415V
    Rated frequency50/60Hz
    Rated working current63,80,100A
    Making and breaking capacity6000A
    Release typeC,D
    Poles1,2,3,4P
    Mechanical life20000
    Electric life2000
    Sequence
    NO .
    ReleaseTest
    current I/In
    Start stateTripping
    time
    Expected
    restlt
    1C,D1.13InCold statet≤2hNot tripping
    2C,D1.45InStart right after
    the serial NO .
    1 test
    t<2hTripping
    3C,D2.55InCold state1s<t<120sTripping
    4C
    D
    5In
    10In
    Cold statet≤0.1sNot tripping
    5C
    D
    10In
    20In
    Cold statet<0.1sTripping


    Product Description

    Model NO.
    NC-125H
    Poles Number
    2
    Type
    Circuit Breaker
    Function
    Conventional Circuit Breaker
    Certification
    CE, CCC
    Brand Name
    Suntree/OEM/ODM
    Model Number
    Nc-100
    Attestation
    IEC60898-2
    Mounting
    35mm DIN Rail Breaker
    Number of Poles
    1p, 2p, 3p, 4p
    Rated Current(a)
    32, 40, 50, 63, 80, 100, 125A
    Breaking Capacity(a)
    10000
    Rated Voltage(V)
    230/400V
    Rated Frequency(Hz)
    50/60Hz
    Endurance
    ≥4000
    Trademark
    suntree
    Specification
    1a~63a
    Origin
    Zhejiang China
    HS Code
    85362000


    NC-125H 100A 125A miniature circuit breaker

    NC100 circuit breaker MCB
    Application:
    1)NC100 Series Miniature Circuit Breaker High Breaking Capacity is a small circuit breaker, the maximum breaking capacity of up to 36kA Include NC100H/NC125H Miniature Circuit Breaker, NC100LS small leakage protection circuit breaker and vigi NC100 accessories, etc.
    Mainly used in industry, construction, residential, energy and infrastructure construction, etc.

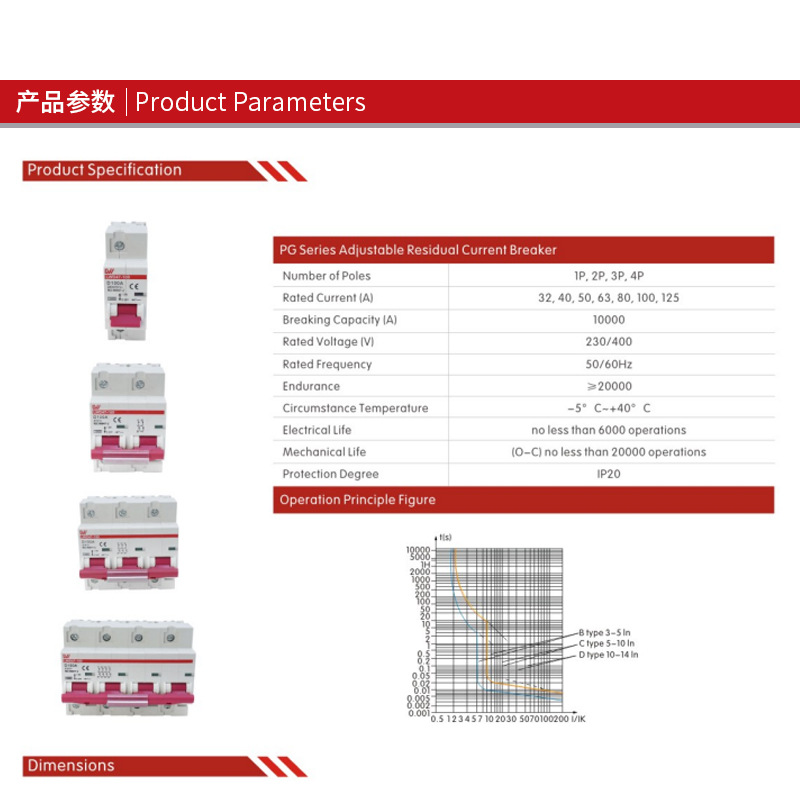

    Type
    NC-125H
    Number of poles1P, 2P, 3P, 4P
    Rated Current(A)32, 40, 50, 63, 80, 100, 125A
    Breaking Capacity(A)10000
    Rated Voltage(V)230/400V
    Rated Frequency(Hz)50/60Hz
    Endurance≥4000
    Circumstance Temp.(°C)-5°C ~ +40°C
    Electrical Life≥6000
    Mechanical Life≥20000
    Terminal protectionIP20
