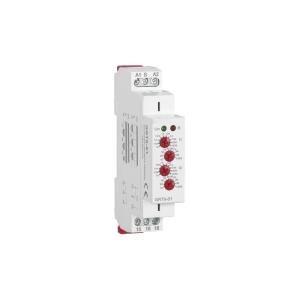

    RT8-S1 Modular Timing Relays AC/DC12-240V

    Ask Lasest Price
    Brand Name : OEM/Fenigal
    Model Number : RT8-S1/S2
    Certification : CE,CCC etc.
    Price : USD7~USD8/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    RT8-S1 Modular Timing Relays AC/DC12-240V

    RT8-S1 AC/DC12-240V Adjustable Protective Time Relay Cycler 12v 24v 48 volt DC Relay Price

    General

    Applications
    -It is used for regular room ventilation, cyclic dehumidifi cation, light control,
    circulating pumps, noon signs, etc.


    Function Features
    -2 time functions:
    -Cycler beginning with pulse
    -Cycler beginning with pause
    -Function choice is done by an external jumper of terminals S-A1.
    -Time scale 0.1 s - 100 days devided into 10 time ranges:
    (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
    / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /
    10 days - 100 days).
    -Relay status is indicated by LED.
    -1-MODULE,DIN rail mounting.


    Electrical features

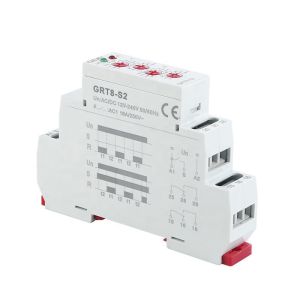

    Model NOGRT8-S1 OR GRT8-S2
    FunctionAsymmetric Cycler Timer Relay
    Voltage RangeAC230V (A230) OR AC/DC12V-240V (W240)
    Output1 SPDT OR 2 SPDT
    Supply TerminalsA1-A2
    Supply Voltage Tolerance-15% +10%
    Time SettingPotentionmeter
    Supply IndicationGreen LED
    Output IndicationRed LED
    Rated Frequency50/60HZ
    Rated Current16A/AC1
    Protection DegreeIP40 for front Panel / IP20 for Terminals
    Weight/pcs0.1KG/PCS
    StandardEN 61812-1,IEC60947-5-1
    CertificationsCE CB CCC TUV
    Warranty/guarantee18months
    MOQ1PCS
