    85L1 69L9 Series Analog Panel Pointer Frequency Power Meter , Power Factor Meter 600V 50A

    Ask Lasest Price
    Brand Name : None
    Model Number : 85L1, 69L9
    Certification : CE,CCC
    Price : USD5~USD7 (unit of plug/socket)
    Payment Terms : T/T, Western Union
    Supply Ability : 5,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    85L1 69L9 Series Analog Panel Pointer Frequency Power Meter , Power Factor Meter 600V 50A

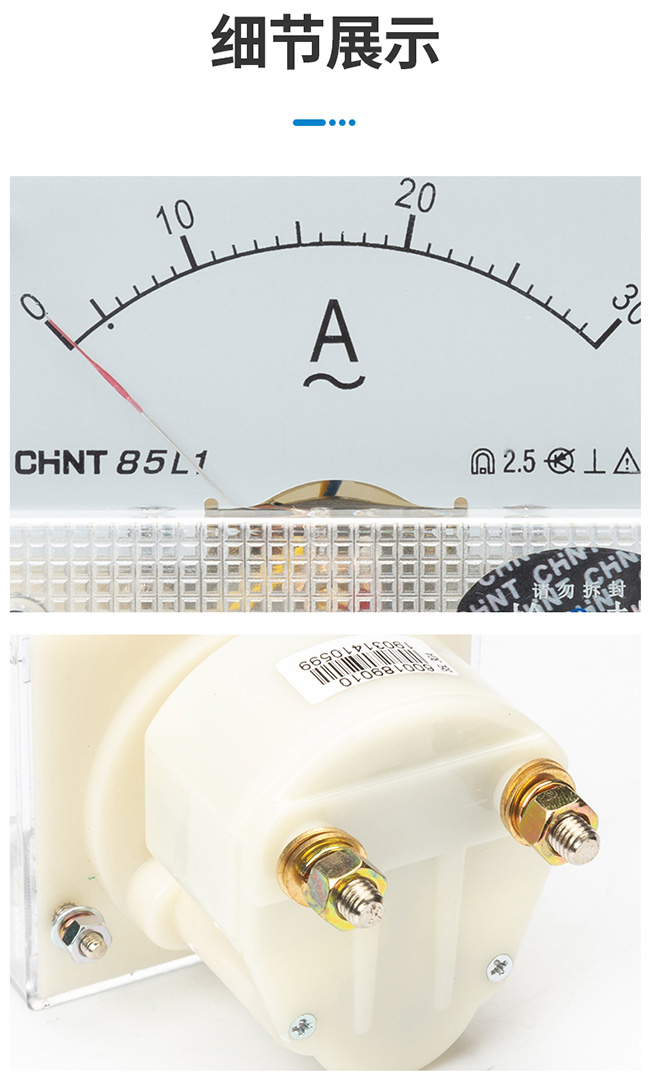

    Chint 85L1, 69L9 series analog panel pointer 600V, 50A ammeter, voltmeter, Frequency, Power meter and Power factor meter


    85, 69 series analog meter/panel meter/ pointer analog meter:

    Introduction:

    85, 69 series instrument consists of measuring circuit, measuring mechanism and indicating device, adopting magneto-electric type inner magnetic mechanism with plastic cover, crystal glasses, and printed dial plate, which makes it aesthetic, generous and extensive outlook.

    Technical parameters:

    Assembly Position: The instrument is suitable for vertically mounted, it is permitted to incline ±5°, unless otherwise specified.

    Overshoot and damping time: Overshoot usually means the instrument with deflection angle less than 180°, and the overshoot not exceed the 20% of the scale length. For other instruments, not exceed 25%.

    Damping time ≤4S, means measurement for the final indication of the indication device at the 2/3 of the scale forced by sudden power and the deviated final static location of the indication device not exceed 1.5% of the scale at any time after the 4s.

    Storage temperature range:-40℃~+70℃

    Working environment: The reference ambient temperature is 23℃±2℃ and the relative humidity is 25%~85%. The working environment temperature is -20℃~+40℃ and the relative humidity is not exceeding 95%, and no breakdown if there is no ash and corrosive gas in the air.

    AC voltage test: No electrical breakdown and flashover after frequency of 50Hz sine wave alternative voltage of 2kV lasted 1 min.

    Isolation strength:>20MΩ/DC500V

    Zero adjusting device: Except for the non-mechanism zero-reading instrument, all of other instruments are equipped with front zero adjusting device, used for adjusting the mechanism zero settings for the instrument.

    Overload current meter: The overload multiples normally is one and two times, and we can provide special offer for 1.5 times, 1.5 times, 3 times, 4 times, 5 times and 6 times overload according to user’s need. Its function is to indicate the short-time general value of the current> rated current, to protect the instrument, for instance, the start current when the electromotor starts.

    Specification and accuracy:

    Item

    Specification

    Measuring Range

    Accuracy Grade

    DC Voltmeter

    85C1-V
    85C17-V
    69C9-V
    69C13-V

    1V~750V(direct connect),
    450V~450kV/1mA or5mA(via external valued resistor)

    Class 2.5

    DC Ammeter

    85C1-A
    85C17-A
    69C9-A
    69C13-A

    50μA~20A (direct connect)
    20A~10kA/75mV or 60mV(via external current transformer)

    Class 2.5

    AC Voltmeter

    85L1-V
    85L17-V;
    69L9-V
    69L17-V;
    69L13-V

    15V~600V (direct connect), 380V~450kV /100V (via voltage transformer)


    AC Ammeter

    85L1-A
    85L17-A
    69L9-A
    69L17-A
    69L13-A

    0.1A~50A (direct connect)
    5A~10kA/5A or 1A (via current transformer)

    Class 2.5

    Frequency Meter

    85L1-Hz
    69L9-Hz;
    69L13-Hz

    45~55Hz,45~65Hz,55~65Hz;
    Rated voltage:100V 220V 380V

    Class 1.0

    Power Meter

    85L1-W/Var
    69L9-W/Var

    100V,220V,380V (direct connect)
    380V-380kV/100V 5A, 5A~10kA/5A

    Class 2.5

    Power Factor Meter

    85L1-cosφ;
    69L9-cosφ

    0.5C~1~0.5L
    100V 5A, 220V/5A,380V 5A

    Class 2.5

    Product Name

    Outline Size

    Hole Size (Round)

    69L17
    69C17


    86×66×67


    83×43

    85L17
    85C17


    70×66×59


    67×37

    Application:

    With the advantages of the direct indication of the variation trend of the measured electrical quantity and convenient reading, it is mainly applied into the electrical equipment of industrial and mining area, new energy area, petrochemical area, transportation and shipping area, aeronautics and astronautics area and power transmission and distribution area, featured with simple construction, easy installation, clean printing, aesthetic and generous outlook and wide vision.

    Warranty:

    We guarantee free reparation and change for the meter if found any unconformity with the standard, under the circumstance of that the users operate fully complying with this instructions and complete seal after delivery within 18 months.
