    SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA

    Ask Lasest Price
    Brand Name : Schneider Electric
    Model Number : iSt fixed type
    Certification : CE,CCC
    Price : USD48~USD260
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA

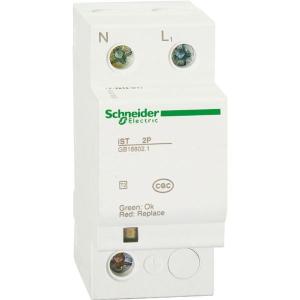

    Schneider Electric iST Surge Protection Device SPD 1,2,3,4 Pole 230V/400V Home or Industrial Use Imax=20,40,65kA


    Characteristic

    * IEC test category: Class II test (8/20us)
    * Compliance with standards: GB 18802.1
    * Maximum sustainable operating voltage Uc: 340V
    * Maximum discharge current Imax: 65/40/20kA
    * Nominal discharge current In: 35/20/10kA
    * Voltage protection level Up: 2.0/1.5/1.2kV
    * Series: 1P/2P/3P/4P/1P+N/3P+N



    Advantage

    * The latest through the lightning protection product testing center of Shanghai Lightning Protection Center
    GB 18802.1-2011 conformity assessment
    * China Quality Certification Center CQC Mark Certification


    Application

    Suitable for secondary protection, tertiary protection, can be used for TN-C, TN-S, TT system


    main information

    Product Series

    IST

    product type

    Surge protector

    Product short name

    IST 65r

    Number of poles

    3P + N

    Output type

    Remote indication signal

    Surge protector application type

    Power distribution network

    Grounding system

    TN-S
    TT

    Additional information

    Surge protector test category

    (Type II)

    Structure principle and action characteristics of surge protector

    MOV

    Rated working voltage [Ue]

    230/400 V

    Maximum continuous operating voltage [Uc]

    Common mode: 260 V (N - PE)
    Common mode: 440 V (L - PE)
    Differential mode: 340 V (L - N )

    Maximum [Up] voltage protection level

    Common mode <1.5 kV (N - PE)
    Differential mode <2 kV (L - N )
    Common mode <2.1 kV (L - PE)

    Local signal indication

    Green/red indicator

    Installation type

    Locking clip locking

    Installation method

    DIN rail mounting

    Width (multiple of 9mm)

    8

    height

    81 mm

    width

    72 mm

    depth

    64 mm

    colour

    White (RAL 9003)

    Response time

    <= 25 ns

    Wiring ability

    Wiring or lower wiring on tunnel terminals 2.5...35 mm2 single strand hard wire
    Wiring or lower wiring on the tunnel terminal 2.5...25 mm2 cord

    Tightening torque

    3.5 Nm

    surroundings

    standard

    GB 18802.1:2011
    IEC 61643-1

    certified product

    CQC

    IP protection level

    Front panel: IP40
    Terminal: IP20

    Operating temperature

    -20...60 °C

    Storage ambient temperature

    -40...70 °C
