    5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line

    Ask Lasest Price
    Brand Name : Chint
    Model Number : ND16
    Certification : CE,CCC etc.
    Price : USD1~USD2/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 50,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line

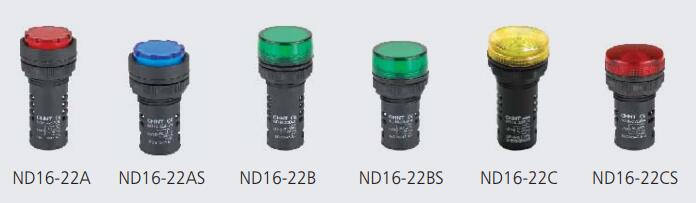

    CHINT ND16 Series Indicator Lamp Buzzer Red,Green,Blue,Yellow,White 12v,24v,110v,230v LED Line AC380VDC220V


    characteristic

    • Compliance with IEC, CCC certification standards

    • IP65, or IP66 (with protective cover)

    • Operating temperature -25°C to +70°C

    • Screw fastening method

    • Complete product range

    • Modular product design for custom installation and use

    • Warranty period: 18 months


    Advantage

    Simple and refined

    • Rugged and durable metal series for easy operation and quick and easy installation

    application

    • Industry: Machine Manufacturing, Control System Panel Manufacturing, etc.

    • Downstream applications: transmission and distribution panels, utilities, buildings, airports, etc.


    Working & mounting conditions
    3. Technical data
    2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃.
    2.2 Altitude: ≤2000m.
    2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
    2.4 Pollution degree: 3
    2.5 Overvoltage category: Ⅲ


    main information

    Product Series

    ND16

    product type

    Complete set of indicators

    Product short name

    ND16 Indicator Lamp

    Border material

    plastic

    Mounting diameter

    22 mm

    Separate sales quantity per piece

    1

    Operating head or lens color

    red

    Light source

    LED bulb

    Lamp holder

    Built-in BA 9s base

    Rated power supply voltage [Us]

    24 V AC/DC 50/60 Hz

    Additional information

    device installation

    Mounting hole - Diameter: 22.5 mm

    signal type

    Constantly bright

    Power supply voltage range

    0.8...1.1 V AC/DC

    model

    XCE

    surroundings

    Protection process

    TC

    Storage ambient temperature

    -40...70 °C

    Operating temperature

    -25...55 °C

    Overvoltage type

    Class I in accordance with IEC 60356

    IP protection level

    IP66 in accordance with IEC 60529

    IK protection level

    IK05 complies with IEC 50102

    main information

    Product Series

    ND16

    product type

    Complete set of indicators

    Product short name

    XB2B

    Border material

    plastic

    Mounting diameter

    22 mm

    Separate sales quantity per piece

    1

    Operating head or lens color

    green

    Light source

    LED bulb

    Lamp holder

    Built-in BA 9s base

    Rated power supply voltage [Us]

    24 V AC/DC 50/60 Hz

    Additional information

    device installation

    Mounting hole - Diameter: 22.5 mm

    signal type

    Constantly bright

    Power supply voltage range

    0.8...1.1 V AC/DC

    model

    XCE

    surroundings

    Protection process

    TC

    Storage ambient temperature

    -40...70 °C

    Operating temperature

    -25...55 °C

    Overvoltage type

    Class I in accordance with IEC 60356

    IP protection level

    IP66 in accordance with IEC 60529

    IK protection level

    IK05 complies with IEC 50102
