    1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction

    Ask Lasest Price
    Brand Name : Chint
    Model Number : BZMJ
    Certification : CE,CCC
    Price : USD8~USD90 (up to 450V/60kvar)
    Payment Terms : T/T, Western Union
    Supply Ability : 5,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction

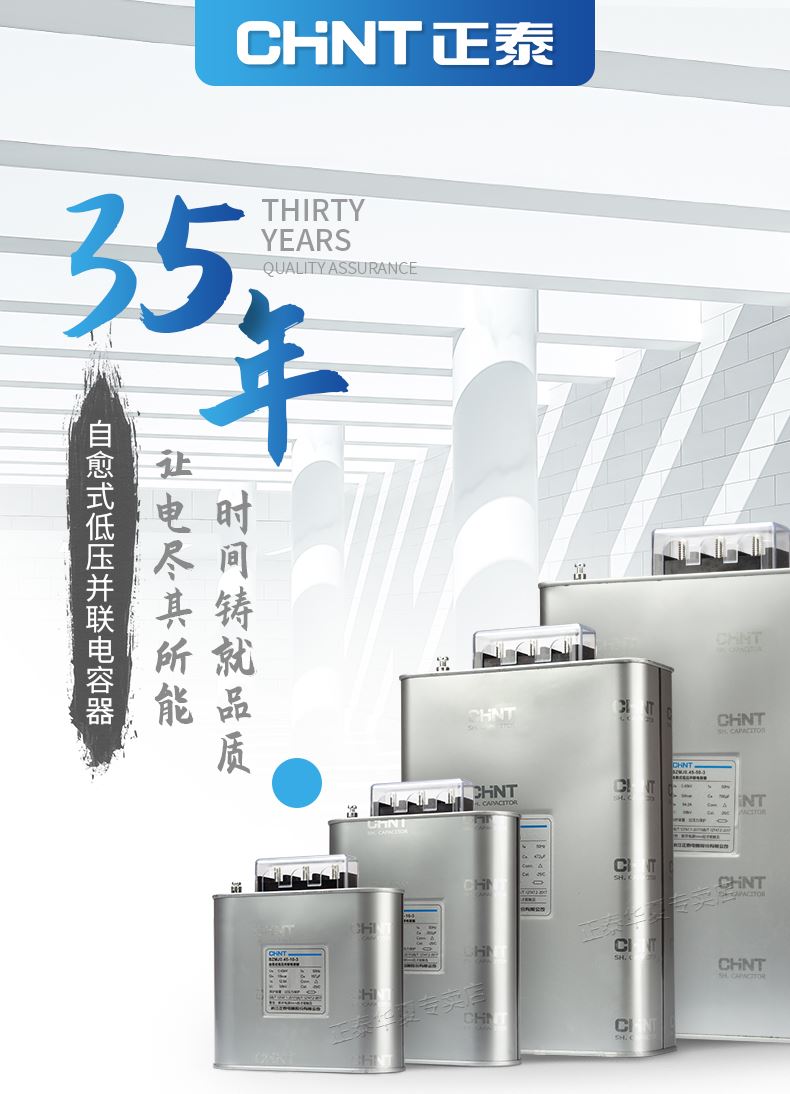

    Chint BZMJ Low Voltage Self-healing Shunt Capacitor Banks for Reactive Energy Compensation and Power Factor Correction


    General

    Power factor determines how well you use your power. It’s the simple ratio of your real power over your apparent power. The general engineering practice or rule of thumb is to keep your power factor number as close to 1 as possible. Why correct power factor? Correcting power factor can reduce your utility bills, reduces apparent power and loading on your distribution network, reduces carbon emissions, and improves voltage regulation. The most cost-effective way to correct power factor is to use automatic capacitor systems suitable for small, medium, and large network installations.


    Main

    range of product

    BZMJ

    product or component type

    Capacitor

    network frequency

    50/60 Hz

    series name

    BZMJ

    network harmonic content

    <= 20 %

    Electrical parameters

    45.1 kvar 380 V 50 Hz
    50 kvar 400 V 50 Hz
    53.8 kvar 415 V 50 Hz

    maximum permissible voltage

    1.1 x Un (8 hours over 24 hours)

    continuous overcurrent capacity

    1.8 x In

    rated voltage

    380…415 V AC 50/60 Hz


    Complementary

    dielectric losses

    < 0.2 W/kvar

    power losses

    < 0.5 W/kVAr

    capacitance tolerance

    - 5 % to 10 %

    voltage test

    2.15 x Un AC between terminals for 10 s
    <= 660 V - 3 kV AC between terminal and container for 10 s
    >= 660 V - 6 kV AC between terminal and container for 10 s

    inrush current

    250 x In

    maximum switching operation per year

    7000

    service life in hours

    130000 h

    dielectric material

    Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)

    impregnation material

    Non-PCB dry PUR resin
    Biodegradable

    type of installation

    Indoor installation

    connections - terminals

    ClampTite terminal

    mounting mode

    Upright/horizontal

    diameter

    136 mm

    height

    321 mm

    net weight

    5.3 kg


    Environment

    standards

    IEC 60831-2
    IEC 60831-1

    IP degree of protection

    IP00

    operating altitude

    2000 m

    temperature class

    D

    ambient air temperature for operation

    -25…55 °C

    relative humidity

    95 %
