    Modular 1 3 4 2 Pole AC Contactor , Home AC Contactor 20A 25A 40A 63A 230V/400V IEC 61095

    Ask Lasest Price
    Brand Name : Chint
    Model Number : NCH8
    Certification : CE,CCC
    Price : USD4~USD20
    Payment Terms : T/T, Western Union
    Supply Ability : 5,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    Modular 1 3 4 2 Pole AC Contactor , Home AC Contactor 20A 25A 40A 63A 230V/400V IEC 61095

    NCH8 1,2,3,4 Pole 20A,25A,40A,63A 230V/400V Modular AC Contactor Chint Home or Industrial Use IEC 61095


    General

    • Product standard IEC61095/GB17885
    • Product Certification CCC CE
    • Product poles 1,2,3,4
    • Rated current 16,25,40A,63A,100A
    • Main contact type NO, NC, NO+NC
    • Protection class IP20B (terminal), IP40 (installed in the distribution box)
    • Ambient temperature -5 ° C to +60 ° C (When the contactor is installed in a distribution box with an internal temperature range of 50 ° C to 60 ° C, there is a need to use a spacer between the contacts , its product number is A9A27062)
    • Storage ambient temperature -40°C~+70°C
    • Minimum noise
    • Indicate mechanical position

    Features

    1.1 Electric ratings: up to 20A, 25A, 40A, 63A, 230V, 400V AC50/60Hz;

    1.2 Utilization category: AC-1, AC-7a, AC-7b; 1

    1.3 Standard: IEC/EN 61095

    2.1 Compact design and modularization design;

    2.2 Insulation material with excellent performances has been adopted to enhance the operation security to a great extent;

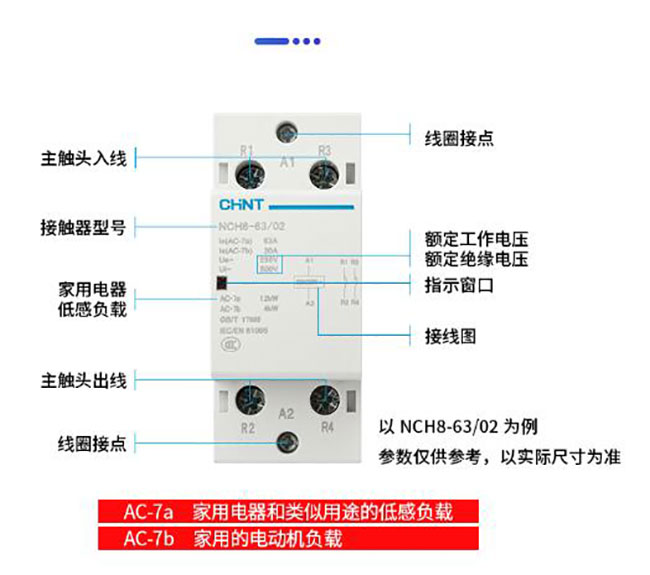

    2.3 Elegant appearance. A mounting instruction diagram is appended for convenient operation; 2.4 No noise during operation


    main information
    Range of product
    Chint Modular
    product name
    modular AC Contactor
    product type
    Contactor
    Product short name
    NCH8
    Applications
    Motor heating and lighting
    Poles
    1P
    Rated operating current [Ie]
    25 A AC-7A
    8.5 A AC-7B
    Loop contact type
    1 NO
    Network Type
    AC
    Control type
    remote control
    Control loop voltage
    230...240 V AC 50 Hz
    Additional information
    Network frequency
    50 / 60Hz
    Rated working voltage [Ue]
    250 V AC 50 Hz
    Maximum power
    1.2 W on 250 V AC
    Rated insulation voltage [Ui]
    500 V AC 50/60 Hz
    Rated impulse withstand voltage [Uimp]
    4 kV
    Control signal type
    Self-holding
    operating frequency
    Number of switching operations / per day
    Local signal indication
    Trip indicator window
    Pulling power (VA)
    2.7 VA
    (~50Hz pull-in) power consumption (VA)
    9.2 VA
    Installation type
    Locking clip locking
    Installation method
    35 mm DIN rail
    Width (multiple of 9mm)
    2
    height
    81 mm
    width
    18 mm
    depth
    60 mm
    colour
    white
    Mechanical life
    1000000 times
    Electrical life
    100000 times IEC/EN 61095 25 A 50 Hz AC-7A
    30000 times IEC/EN 61095 8.5 A 50 Hz AC-7B
    30000 times IEC/EN 61095 50 Hz AC-7C
    100000 EN/IEC 60947-4-1 50 Hz AC-1
    30000 times EN/IEC 60947-4-1 50 Hz AC-3
    30000 times EN/IEC 60947-4-1 50 Hz AC-5A
    30000 times EN/IEC 60947-4-1 50 Hz AC-5B
    Wiring ability
    Control circuit: tunnel terminal 2 cable 1.5 mm2 single strand hard wire
    Power circuit: tunnel terminal 1 cable 1...4 mm2 cord
    Power circuit: tunnel terminal 1 cable 1.5...6 mm2 single strand hard wire
    Control circuit: tunnel terminal 1 cable 1.5...2.5 mm2 single strand hard wire
    Control circuit: tunnel terminal 2 cable 1.5...2.5 mm2 cord
    Tightening torque
    Control loop: 0.8 Nm
    Power circuit: 0.8 Nm
