Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V

    Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers

    Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers
    • Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers
    • Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers
    • Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers
    • Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers
    • Buy cheap Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V from wholesalers

    Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V

    Ask Lasest Price
    Brand Name : Schneider Electric (TeSys)
    Model Number : LC1-D (TeSys D)
    Certification : CE,CCC,CB etc.
    Price : USD10~USD98(~3P/95A), ~USD998(~3P/475A)
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V

    TeSys Schneider Electric LC1D AC Contactor 3P, 4P 9A~95A,115~620A,AC-3 AC-1 24V,110V,230V,380V etc.


    Characteristic

    TeSys D Green extends the TeSys D range with new electronic coils that reduce energy consumption by 80% compared to TeSys D standard AC or DC coils.
    The TeSys D Green contactor model is reduced by 90% and the selection and maintenance is more convenient.
    The TeSys D Green contactor works with the TeSys LR9D electronic overload relay to reduce heat generation and energy consumption by up to 50%.
    • Current range 09~620A;
    • AC, DC control coil is optional (DC coil to 38A);
    • Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
    • Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), EverLink terminal connection (40~65A) for customer installation;
    • Product Certification: CCC, CE, CCS;


    Advantage
    • Compact installation
    > Contactors to 38A and protection components are only 45mm wide
    > Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
    > Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
    > Starter components provide pre-wired modules for quick and easy assembly
    • Highly integrated
    > to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
    > DC coil with built-in bidirectional suppression diode
    > Reversible contactor group with built-in bidirectional suppression diode
    • Safe and reliable
    > The main circuit and control circuit of the control and protection components are clearly distinguished
    > Mirrored contact design that meets safety standards, ensuring 100 million reliable actions
    > Protective cover prevents accidental contact of the contactor
    • outstanding quality
    > DC coils have a wide range of control voltages (0.7~1.25Uc)
    > Strong earthquake resistance
    > lower noise
    > Increased terminal strength
    • TeSysD 40-65A Everlink:
    > Permanent torque, reliable installation
    > Compact and space saving
    > Easy to install, saves time
    > Easy to maintain and save costs


    main information
    Product Series
    TeSys
    product name
    TeSys D
    product type
    Contactor
    Product short name
    LC1D
    Contactor application area
    Squirrel cage motor for switching on and off normal start
    Applied to AC loads with a power factor greater than or equal to 0.95
    Use category
    AC-1
    AC-3
    AC-4
    Number of poles
    3P
    Power pole contact composition
    3 NO
    Rated working voltage [Ue]
    Power circuit: <= 300 V DC 25...400 Hz
    Power circuit: <= 1000 V AC
    Rated operating current [Ie]
    125 A 60 °C) on <= 440 V AC AC-1 for power supply circuits
    95 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit
    Motor power (kW)
    45 kW on 415...440 V AC 50/60 Hz (AC-3)
    55 kW on 500 V AC 50/60 Hz (AC-3)
    45 kW on 660...690 V AC 50/60 Hz (AC-3)
    45 kW on 1000 V AC 50/60 Hz (AC-3)
    15 kW on 400 V AC 50/60 Hz (AC-4)
    25 kW on 220...230 V AC 50/60 Hz (AC-3)
    45 kW on 380...400 V AC 50/60 Hz (AC-3)
    Motor power HP (UL / CSA)
    20 hp on 200/208 V AC 50/60 Hz for 3-phase motors
    7.5 hp on 115 V AC 50/60 Hz for 1-phase motors
    15 hp on 230/240 V AC 50/60 Hz for 1-phase motors
    25 hp on 230/240 V AC 50/60 Hz for 3-phase motors
    60 hp on 460/480 V AC 50/60 Hz for 3-phase motors
    60 hp on 575/600 V AC 50/60 Hz for 3-phase motors
    Control loop characteristics
    AC on 50/60 Hz
    Control loop voltage
    230 V AC 50/60 Hz

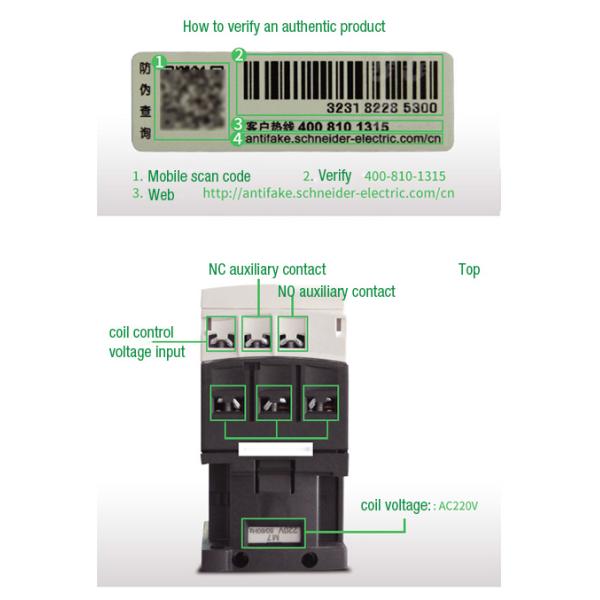

    Auxiliary contact type
    1 NO + 1 NC
    Rated impulse withstand voltage [Uimp]
    8 kV in accordance with IEC 60947
    Overvoltage category
    III
    Conventional heating current [Ith]
    10 A on <60 °C for signal circuit
    125 A on <60 °C for power supply circuit
    Rated turn-on capability [Irms]
    140 A AC suitable signal circuit in accordance with IEC 60947-5-1
    250 A DC suitable signal loop in accordance with IEC 60947-5-1
    1100 A on 440 V applicable power supply circuit in accordance with IEC 60947
    Rated breaking capacity
    1100 A on 440 V applicable power supply circuit in accordance with IEC 60947
    Rated short-time withstand current [Icw]
    1100 A on <40 °C - 1 s for power supply circuit
    135 A on <40 °C - 10 minutes for power circuit
    800 A on <40 °C - 10 s for power supply circuit
    400 A on <40 °C - 1 minute for power circuit
    100 A - 1 s for signal circuits
    120 A - 500 ms Applicable signal loop
    140 A - 100 ms for signal circuits
    Fuses used with relays
    10 A gG Applicable signal circuit in accordance with IEC 60947-5-1
    200 A gG on...<= 690 V with type 1 for power circuit
    160 A gG on...<= 690 V with type 2 for power supply circuit
    Average impedance
    0.8 mΩ - Ith 125 A 50 Hz for power supply circuits
    Rated insulation voltage [Ui]
    Power circuit: 600 V CSA certification
    Power circuit: 600 V UL certification
    Power circuit: 1000 V in accordance with IEC 60947-4-1
    Signal loop: 690 V in accordance with IEC 60947-1
    Signal loop: 600 V CSA certified
    Signal circuit: 600 V UL certification
    Electrical life
    1.2 kA2.s 95 A AC-3 Ue condition <= 440 V
    1.3 kA2.s 125 A AC-1 Ue condition <= 440 V
    Power consumption per pole
    12.5 W AC-1
    7.2 W AC-3
    Safety cover
    band
    Installation method
    Base plate installation
    Rail mounting
    standard
    CSA C22.2 No 14
    EN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    UL 508
    certified product
    LROS (Lloyds register of shipping)
    DNV
    GOST
    RINA
    CCC
    BV
    GL
    Wiring ability
    Control circuit: Bolt fastening 2 Cable 1...2.5 mm2 cord
    Control circuit: Bolt fastening 1 Cable 1...2.5 mm2 cord
    Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord without
    Control circuit: Bolt fastening 2 Cable 1...4 mm2 cord without
    Control circuit: Bolt fastening 1 Cable 1...4 mm2 hard wire without
    Control circuit: Bolt fastening 2 Cable 1...4 mm2 hard wire without
    Power circuit: Terminal 1 Cable 4...50 mm2 cord without
    Power circuit: Terminal 2 Cable 4...25 mm2 cord without
    Power circuit: Terminal 1 Cable 4...50 mm2 flexible cable
    Power circuit: Terminal 2 Cable 4...16 mm2 cord
    Power circuit: Terminal 1 Cable 4...50 mm2 Hard wire without
    Power circuit: Terminal 2 Cable 4...25 mm2 Hard wire without
    Tightening torque
    Control circuit: 1.2 Nm Screwdriver with bolt Ø 6 flat
    Control circuit: 1.2 Nm Screwdriver with No 2 Phillips screw
    Power circuit: 9 Nm through the terminal with a screwdriver Ø 6 - Ø 8 flat
    Power circuit: 9 Nm through terminal hex type 4 mm
    Action time
    20...35 ms closed
    6...20 ms break
    Safety and reliability
    B10d = 1369863 Contactors with nominal load compliance in accordance with EN/ISO 13849-1
    B10d = 20000000 mechanical load contactors comply with EN/ISO 13849-1
    Mechanical life
    4 kA2.s
    Maximum operating frequency
    3600 times / hour on ... <60 °C


    Features

    As the best selling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.

    TeSys D contactors leverage over 100 years of experience and innovation to control your motors.

    Specifications:

    • AC & DC Coils 50/60 Hz available for whole range
    • DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
    • DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
    • Various types of connection available:
      • Screw clamp terminals
      • Everlink (40 to 80 A)
      • Spring terminals (9 to 38 A and on control terminal up to 65 A)
      • Lugs terminals
      • Faston terminal (9 to 12 A)
    • High making and breaking capacity
    • 1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
    • Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1
    • Up to 30 million mechanical operation cycles
    • Electrical cycles up to 3600 cycles per hour at ambient temperature
    • No derating up to 3000 m altitude
    • Wide range of working temperature: -25°C to 60°C

    Dimensions: 4 width sizes available to cover all ratings

    • 45 mm to 38 A
    • 55 mm from 40 to 65 A
    • 85 mm from 80 to 95 A
    • 120 mm from 115 to 150 A

    TeSys D benefits a wide range of accessories for:

    • Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.
    • Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.
    • System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.

    Benefits

    TeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:

    Safety

    • Safe and long-lasting power connection with Everlink and spring terminals
    • Suitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)
    • Identification of safety chain with red cover and auxiliary contact

    Efficiency

    • Recognized high performance and quality solutions
    • Outstanding breaking/making capacity up to 20 In
    • Multistandard: IEC, UL, CCC, EAC, various Marine standards, etc.
    • PLC direct connection

    Continuity of service

    • Certified type 1 and 2 coordination tables
    • Worldwide availability of products and after-sales services

    Applications

    TeSys D contactors are primarily used in industry, infrastructure and building applications.

    • TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA
    • These contactors can be used to create motor starters for any type of application
