    Capacitor Switching AC Motor Contactor 3P 25A~170A IEC60947 EN/IEC60947-4-1

    Ask Lasest Price
    Brand Name : Chint
    Model Number : CJ19
    Certification : CE,CCC,CB etc.
    Price : USD15~USD190
    Payment Terms : T/T, Western Union
    Supply Ability : 5,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    Capacitor Switching AC Motor Contactor 3P 25A~170A IEC60947 EN/IEC60947-4-1

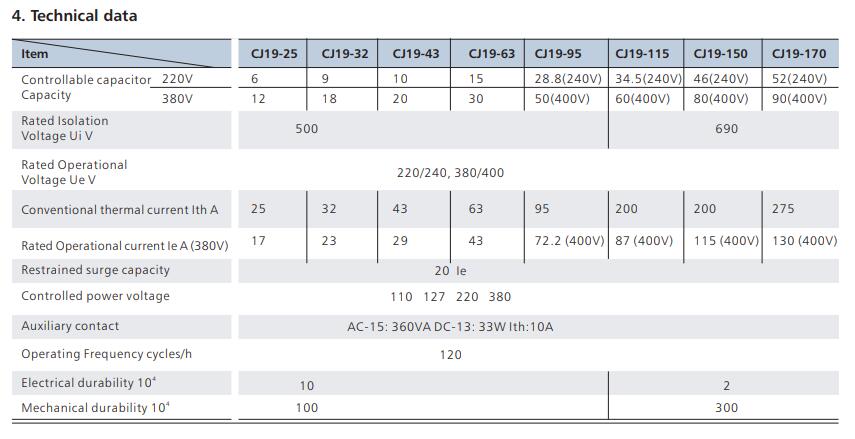

    Chint CJ19 Capacitor Switching Contactor 3P, 25A~170A AC-3 AC-1 Coil Voltage 24V,110V,230V,380V


    main information
    Product Series
    CJ19
    product type
    Capacitor Switching Contactor
    Product short name
    CJ19 Contactor
    Contactor application area
    Power factor correction
    Control loop type
    AC
    Coil type
    AC 50/60 Hz
    Number of poles
    3P
    Loop contact type
    3 NO
    Contactor level code
    DPK
    Auxiliary contact type
    1 NO + 2 NC
    [Uc] control circuit voltage
    220 V AC 50/60 Hz
    Reactive power
    20 kvar on...220...240 V 50/60 Hz on <55 °C
    33.3 kvar on 400...440 V 50/60 Hz on <55 °C
    48 kvar on 660...690 V 50/60 Hz on <55 °C
    Additional information
    protection cap
    no
    Auxiliary contact type
    Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1
    Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1
    Installation method
    Rail mounting
    Base plate installation
    Tightening torque
    Power circuit: 5 Nm through the terminal
    Rated working voltage [Ue]
    Power circuit: <= 690 V AC 50/60 Hz
    height
    180 mm
    width
    75 mm
    depth
    150 mm
    product weight
    1.3 kg
    surroundings
    Standards compliant
    IEC 60831
    GB 14048.4
    IEC 60947-4-1
    IEC 60070
    certified product
    CCC
    IP protection level
    IP2x complies with IEC 60529
    Protective measures
    TH conforms to IEC 60068-2-30
    Operating temperature
    -5...60 °C
    Storage ambient temperature
    -60...80 °C
    Working elevation
    3000 m without
