    DOL Magnetic AC Motor Contactor Starter 4-63kW AC-3380V For Squirrel Cage Motor

    Ask Lasest Price
    Brand Name : Chint
    Model Number : QC36
    Certification : CE,CCC,CB etc.
    Price : USD15~USD70
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    DOL Magnetic AC Motor Contactor Starter 4-63kW AC-3380V For Squirrel Cage Motor

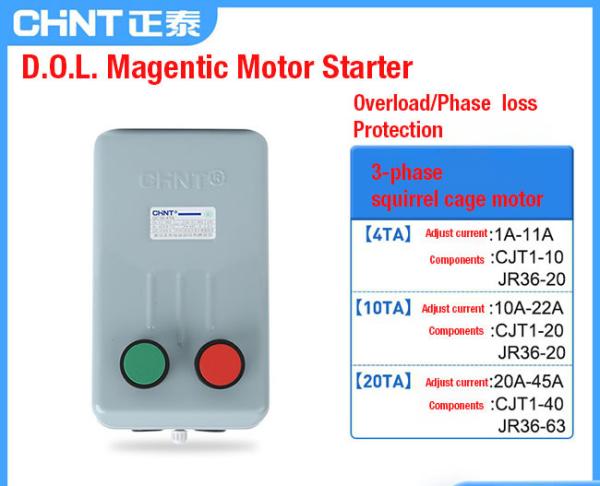

    Chint QC36 AC DOL-Direct-On-Line Magnetic Motor Starter 3P, 4P 1A~63A,4-63kW AC-3380V for Squirrel Cage Motor


    DESCRIPTION

    • Brand Name: CHNT
    • Certification: CCC
    • Warranty: 5A
    • Switch Type: Push Button Switch
    • Model Number: qc36 – 4ta
    • Item Type: Switches
    • Adjust the current: 6.8A~11A
    • Rated voltage: 380V
    • Rated current: 10A
    • power: 4KW/380V
    • Connection wire area: 1.5mm^2
    • Operating temperature: -5℃~+40℃


    Advantage
    • Compact installation
    > Contactors to 38A and protection components are only 45mm wide
    > Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
    > Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
    > Starter components provide pre-wired modules for quick and easy assembly
    • Highly integrated
    > to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
    > DC coil with built-in bidirectional suppression diode
    > Reversible contactor group with built-in bidirectional suppression diode
    • Safe and reliable
    > The main circuit and control circuit of the control and protection components are clearly distinguished
    > Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
    > Protective cover prevents accidental contact of the contactor
    • outstanding quality
    > DC coils have a wide range of control voltages (0.7~1.25Uc)
    > Strong earthquake resistance
    > lower noise
    > Increased terminal strength
    CJX2 40-65A:
    > Permanent torque, reliable installation
    > Compact and space saving
    > Easy to install, saves time
    > Easy to maintain and save costs


    main information
    Product Series
    CJX2
    product name
    AC Contactor
    product type
    Contactor
    Product short name
    CJX2
    Contactor application area
    Applied to AC loads with a power factor greater than or equal to 0.95
    Squirrel cage motor for switching on and off normal start
    Use category
    AC-3
    AC-1
    AC-4
    Number of poles
    3P
    Power pole contact composition
    3 NO
    Rated working voltage [Ue]
    Power circuit: <= 690 V AC 25...400 Hz
    Power circuit: <= 300 V DC
    Rated operating current [Ie]
    18 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit
    32 A 60 °C) on <= 440 V AC AC-1 for power supply circuit
    Motor power (kW)
    4 kW on 220...230 V AC 50/60 Hz (AC-3)
    7.5 kW on 380...400 V AC 50/60 Hz (AC-3)
    9 kW on 415...440 V AC 50/60 Hz (AC-3)
    10 kW on 500 V AC 50/60 Hz (AC-3)
    10 kW on 660...690 V AC 50/60 Hz (AC-3)
    4 kW on 400 V AC 50/60 Hz (AC-4)
    Motor power HP (UL / CSA)
    1 hp on 115 V AC 50/60 Hz for 1-phase motors
    3 hp on 230/240 V AC 50/60 Hz for 1-phase motors
    5 hp on 200/208 V AC 50/60 Hz for 3-phase motors
    5 hp on... 230/240 V AC 50/60 Hz for 3-phase motors
    10 hp on 460/480 V AC 50/60 Hz for 3-phase motors
    15 hp on 575/600 V AC 50/60 Hz for 3-phase motors
    Control loop characteristics
    AC on 50/60 Hz
    Control loop voltage
    230 V AC 50/60 Hz
    Auxiliary contact type
    1 NO + 1 NC
    Rated impulse withstand voltage [Uimp]
    6 kV in accordance with IEC 60947
    Overvoltage category
    III
    Conventional heating current [Ith]
    10 A on <60 °C for signal circuit
    32 A on <60 °C for power supply circuit
    Rated turn-on capability [Irms]
    140 A AC suitable signal circuit in accordance with IEC 60947-5-1
    250 A DC suitable signal loop in accordance with IEC 60947-5-1
    300 A on 440 V applicable power supply circuit in accordance with IEC 60947
    Rated breaking capacity
    300 A on 440 V applicable power supply circuit in accordance with IEC 60947
    Rated short-time withstand current [Icw]
    145 A on <40 °C - 10 s for power supply circuit
    240 A on <40 °C - 1 s for power supply circuit
    40 A on <40 °C - 10 minutes for power circuit
    84 A on <40 °C - 1 minute for power circuit
    100 A - 1 s for signal circuits
    120 A - 500 ms Applicable signal loop
    140 A - 100 ms for signal circuits
    Fuses used with relays
    10 A gG Applicable signal circuit in accordance with IEC 60947-5-1
    50 A gG on...<= 690 V with type 1 for power supply circuit
    35 A gG on ...<= 690 V with type 2 for power supply circuit
    Average impedance
    2.5 mΩ - Ith 32 A 50 Hz for power supply circuits
    Rated insulation voltage [Ui]
    Power circuit: 690 V in accordance with IEC 60947-4-1
    Power circuit: 600 V CSA certification
    Power circuit: 600 V UL certification
    Signal loop: 690 V in accordance with IEC 60947-1
    Signal loop: 600 V CSA certified
    Signal circuit: 600 V UL certification
    Electrical life
    1.65 kA2.s 18 A AC-3 Ue condition <= 440 V
    1 kA2.s 32 A AC-1 Ue condition <= 440 V
    Power consumption per pole
    2.5 W AC-1
    0.8 W AC-3
    Safety cover
    band
    Installation method
    Rail mounting
    Base plate installation
    standard
    CSA C22.2 No 14
    EN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    UL 508
