    Double Power 125A ATS Automatic Changeover Switch CB Level

    Ask Lasest Price
    Brand Name : Fenigal/OEM
    Model Number : ATS AC CB Class
    Certification : CE,CCC
    Price : Negotiate
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000pcs/month
    Delivery Time : 5-8 working days bulk order negotiate
    • Product Details
    • Company Profile

    Double Power 125A ATS Automatic Changeover Switch CB Level

    FENIGAL Manufacturer & OEM of ATS products

    FMQ2 CB level (motor type) double power automatic transfer switch

    Structure features:

    Control device: LCD controller

    Product structure: small size, high current, simple structure, ATS-body

    Features: fast switching speed, low failure rate, easy maintenance, reliable performance (with automatic switching time adjustable, ls ~ 99s) Wiring method: wiring before the board

    Switching mode: grid to grid, grid to generator, self-injection self-repeating, self-injection non-self-repeating, mutual standby

    Product shell frame: 63, 100, 225, 400, 630, 800, 1250, 1600

    Product current: 20, 32, 40, 63, 80, 100, 125, 160, 200, 225, 250, 315, 400, 500

    630, 800, 1000, 1250, 1600A

    Product classification: Circuit breaker (CML TM30)

    Number of product poles: 3, 4

    ATS level: CB level with overload and short circuit protection


    Technical requirements

    ♦In the automatic gear, when the common power under voltage, over voltage, loss of voltage switch to standby power; when the same fault occurs in the standby power, switch to double points position, the display shows automatic alarm at the same time


    ♦LCD screen protects 30s, display screen when button is pressed for the first time, the second time can enter the setting, enter the setting need password input.


    ♦When the manual setting is messy (dead), there is a reset key to reset to the barking value.


    ♦When the controller is set in automatic and manual position, the display shows double points when pressing the double points button on the controller panel, but no alarm.


    When the controller is set to delay switching time, when the power failure is restored to normal within the set value, the double power supply will not be switched, and vice versa.

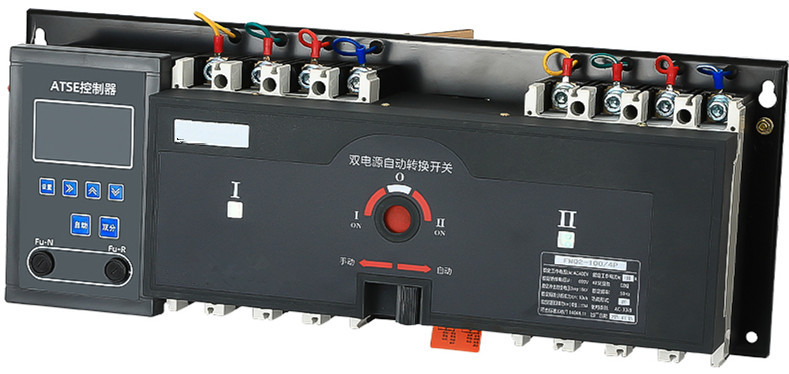

    FMQ2-100/4P-Dl (basic type)

    Double Power 125A ATS Automatic Changeover Switch CB Level

    FMQ2-100/4P-D2 (intelligent type)

    Double Power 125A ATS Automatic Changeover Switch CB Level

    Use categoryAC-33iB
    Rated working voltage UeAC400VAC380V
    Rated insulation voltage Ui690V
    Rated impulse withstand voltage Uimp6kV6kV6kV6kV6kV8kV8kV
    Rated short-circuit breaking capacity Icn10kAlOkA20kA30kA30kA30kA30kA
    Rated short-circuit turn-on capacity Icm17kA17kA40kA63kA63kA63kA63kA
    Service life (times)Mechanical4500500030002000200025002500
    Electrical15001000100010001000500500
    Number of poles3,4
    Operation cycle (sec/time)30S60S
    Switching time0-99S

    Double Power 125A ATS Automatic Changeover Switch CB Level

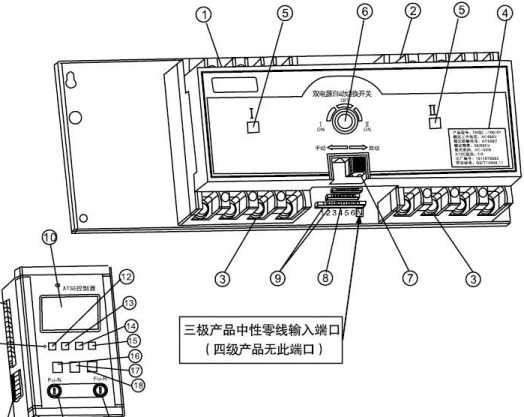

    ① Main terminal of common power inlet② Main terminal of backup power inlet
    ③ Main terminal of load side④ Signage⑤ Commonly used power break indicator
    ⑥Handle jack⑦ Plug sealing plate pulling button⑧ User external signal terminal
    9 Controller signal connection terminal Imitation LCD display
    11 Restore factory default key '1>setting key
    ⑬Displacement key 14Numeric plus key 15Numeric minus key
    16Manual key⑰ Auto Key 18 Double split key
    19 Common power fuse 20Standby power fuse diy 21Generator signal port and
    Fire connection port
