    Single Phase Three Phase 415v Power Voltage Stabilizer Full Automatic Compensated

    Ask Lasest Price
    Brand Name : Fenigal
    Model Number : DBW
    Certification : CE,CCC
    Price : Negotiate
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days or bulk order negotiate
    • Product Details
    • Company Profile

    Single Phase Three Phase 415v Power Voltage Stabilizer Full Automatic Compensated

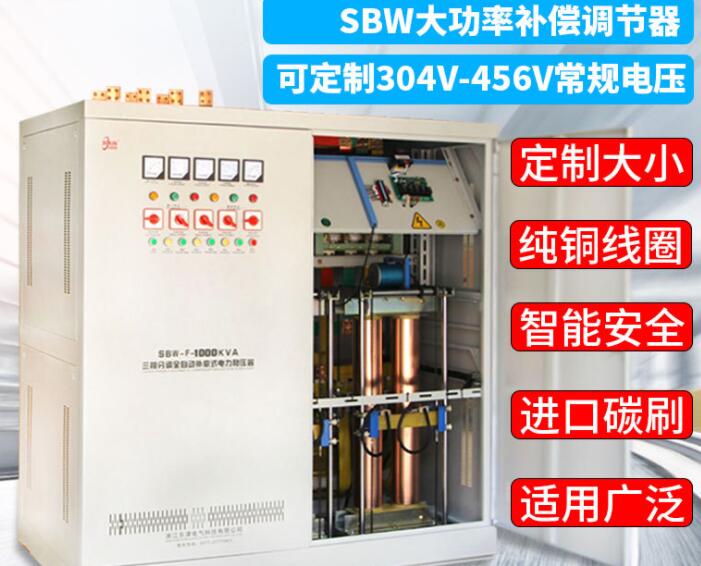

    DBW/SBW Series single-phase and three phase full-automatic compensated power voltage stabilizer

    Application:

    DBW-D/SBW-D series single-phase and three phase full-automatic compensation power voltage stabilizer(hereafter call voltage stabilizer) is a contact adjustable stabilizer,application when outside electricity power fluctuation or load power all time difference rebellious voltage fluctuation,this stabilizer can automatic keep output voltage stabilization,this series products compare with other stabilizer have as follow feature:have big capacity,efficiency very high, non-lack fidelity in wave distortion,the voltage adjustable balance,self-cooling and successively working for long period and long service time,can endure instantaneous over-load,as well as transferring between manual control and automatic control system,besides it is provided with protection over-voltage,over-load(over-current),lack phase or phase fail,phase sequence protect and mechanical breakdown automatic protect,EMI and surge protector and has following merites:small volume,light weight.convenient installation and reliable running and so on(pin meter display and digital display),


    Service Occasions:

    Widely used in electromechanical equipment,metal processing equipment,production line.construction device.excvavtor for gold mine,post and telecommunications,department stores,elevators.hospitals equipment.schools.printing machine.securities and other occasions where all need normally voltage to ensure,such as workshop mines medium enterprises.some of the important equipement and computer power and support where need voltage stabilization.


    Spec.:

    Input Voltage RangeSingle Phase 220V±20%,220V±30%(DBW)
    Three phase four wire,300V-460V or 266V-495V(SBW).pls indicate when placing order
    Phase NumberSingle Phase Three Wire(DBW)/Three Phase Four Wire(SBW)
    Frequency50/60Hz
    Output Voltage

    Single Phase 220V(DBW)

    Three phase four wire,phase voltage 220V,wire voltage 380V,singe-phase voltage 220V(SBW)

    Output Precsion380V±3%,220V±2%,2-5% adjustable
    Response Time<1.5sec.against 10% input voltage deviation
    Efficiency AC-AC>98% other we can do according to customer requirement such as 80%
    Power Factor Cost0.8
    Waveform DistortionNon-lack fidelity waveform, Sine Wave
    Insulation Resistance>2MΩ
    Over-load capability2 times rated current,keeping 1minuter(voltage stabilizer special for elevator and CT and servo-motor and water pump)
    Electric StrengthBear power frequency sine voltage 2000V for 1 Minute without breakdown or flash over.
    Auto/ManualPower on can be choice inside build knife switch and AC contactor
    Protection FunctionOver-Voltage,under-voltage.Over-load(over-current), Short Circuit,Delay time choice,surge protect,EMI,phase-sequency and phase fail and phase UN-balance protection and machical fault.,
    Ambient Temperature-10℃+45℃
    Relative Humidity>90%

    DBW Series Packing information:

    ModelOutput Max Current(A)Products Dimension(cm)Net Weight(kg)
    DBW-10kVA4570×50×135270
    DBW-15kVA6870×50×135275
    DBW-20kVA9170×50×135278
    DBW-25kVA11470×50×135300
    DBW-30kVA13670×50×135310
    DBW-40kVA18270×50×135330
    DBW-50kVA22780×60×150350
    DBW-60kVA27380×60×150370
    DBW-80kVA36480×60×150430
    DBW-100kVA45590×70×170470
    DBW-120kVA54590×70×170490
    DBW-150kVA68290×70×170530
    DBW-180kVA818100×80×190560
    DBW-200kVA909100×80×190590

    SBW Series Packing information:

    ModelOutput Max Current(A)Products Dimension(cm)Net Weight(kg)
    SBW-30kVA4570×57×121250
    SBW-50kVA7680×54×135300
    SBW-60kVA9180×54×135315
    SBW-80kVA12185×62×150350
    SBW-100kVA15285×62×150400
    SBW-120kVA18285×62×150460
    SBW-150kVA227100×70×165480
    SBW-180kVA273100×70×165550
    SBW-200kVA303100×70×165580
    SBW-225kVA241110×80×185715
    SBW-250kVA379110×80×185755
    SBW-300kVA455110×80×200810
    SBW-320kVA485110×80×200900
    SBW-350kVA530110×80×200950
    SBW-400kVA606120×85×2001030
    SBW-450kVA682100×80×200/2 Case1380
    SBW-500kVA758100×80×200/2 Case1510
    SBW-600kVA909100×80×200/2 Case1700
    SBW-800kVA1212100×80×200/3 Case2750
    SBW-1000kVA1515100×80×200/3 Case3050
    SBW-1200kVA1818100×80×200/4 Case3650
    SBW-1400kVA2121100×80×200/4 Case4080
    SBW-1600kVA2424100×80×200/4 Case5100
    SBW-2000kVA3030100×80×200/4 Case5800
