    IP65 Waterproof Solar Junction Box 2 4 6 Strings 1000V AC DC Array PV Combiner Box

    Ask Lasest Price
    Brand Name : FENIGAL
    Model Number : S550VDC
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 60000 Unit/Units per Month
    Delivery Time : 5- 8 work days
    • Product Details
    • Company Profile

    IP65 Waterproof Solar Junction Box 2 4 6 Strings 1000V AC DC Array PV Combiner Box

    2 4 In 1 2 4 Out IP65 Waterproof Solar Junction Box 2 4 6 Strings 1000V AC DC Array PV Combiner Box



    PRODUCT DISPLAY

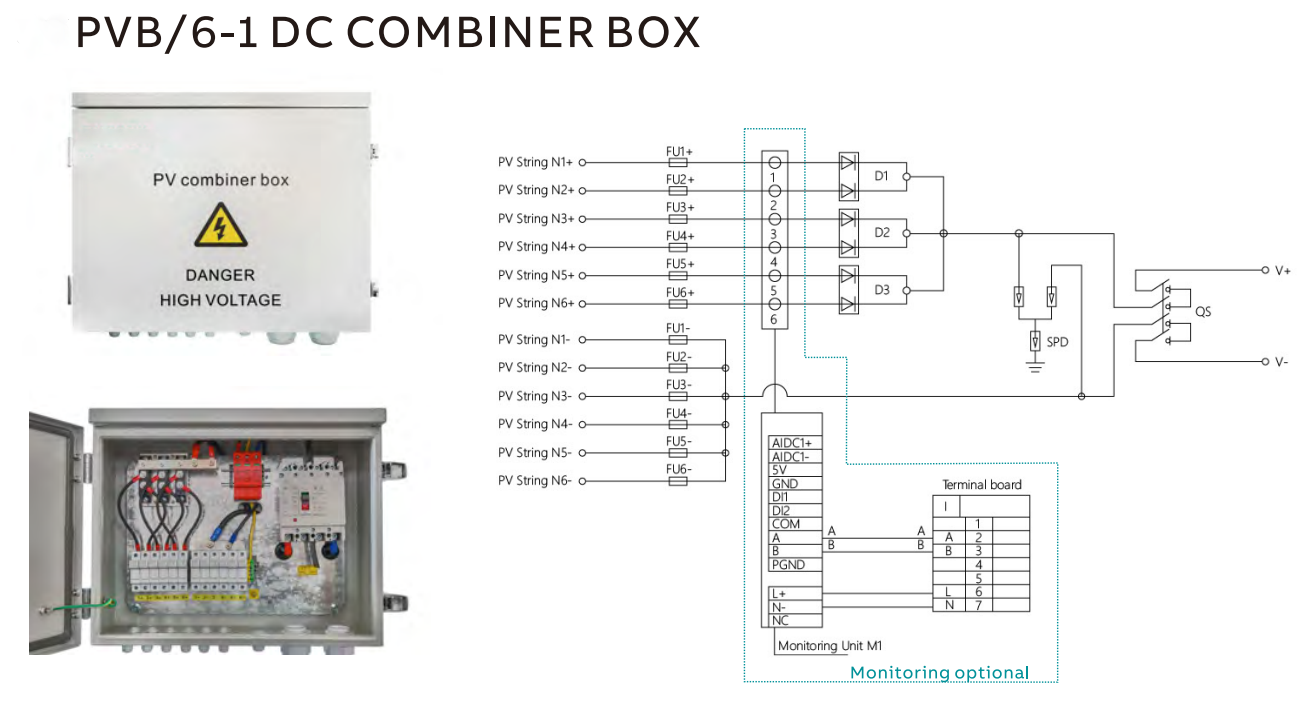

    ModelFNPVB/6-1
    Electric parameter
    System maximum DC voltage1000
    Maximum input current for each string15A
    Maximum input strings6
    Maximum output switch current90A
    Maximum inverter MP PT1
    Number of Output strings1
    Lightning protection
    Category of testGrade 2 protection
    Nominal discharge current20kA
    Maximum discharge current40 kA
    Voltage protection level3.8kV
    Maximum continuous operating voltage Uc1050V
    Poles3P
    Structure characteristicPlug-push module
    System

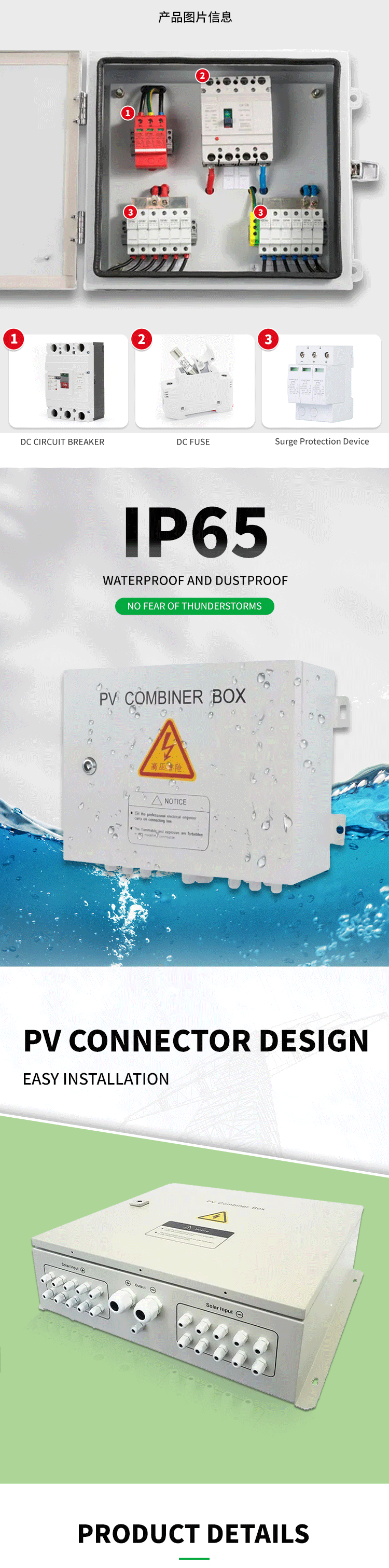

    Protection gradeIP65
    Output switchDC circuit breaker
    MC4R Waterproof ConnectorsStandard
    PV DC fuseStandard
    PV surge protectorStandard
    Box materialEngineering plastics
    Installation methodWeill mounting type
    Operating Temperature-25*C z + 55*C
    Altitude2km
    Permissible relative humidity0-95%, no condensation
    Mechanical parameter
    Width x High x Depth (m m)500x400x180
    CustomizationOEM/ODM

    Support customization of multiple models
    Optional Customized Service:
    1. Support 1500V
    2. Support PV connector
    3. Support monitoring function
    4. Support installation of DC isolator switch

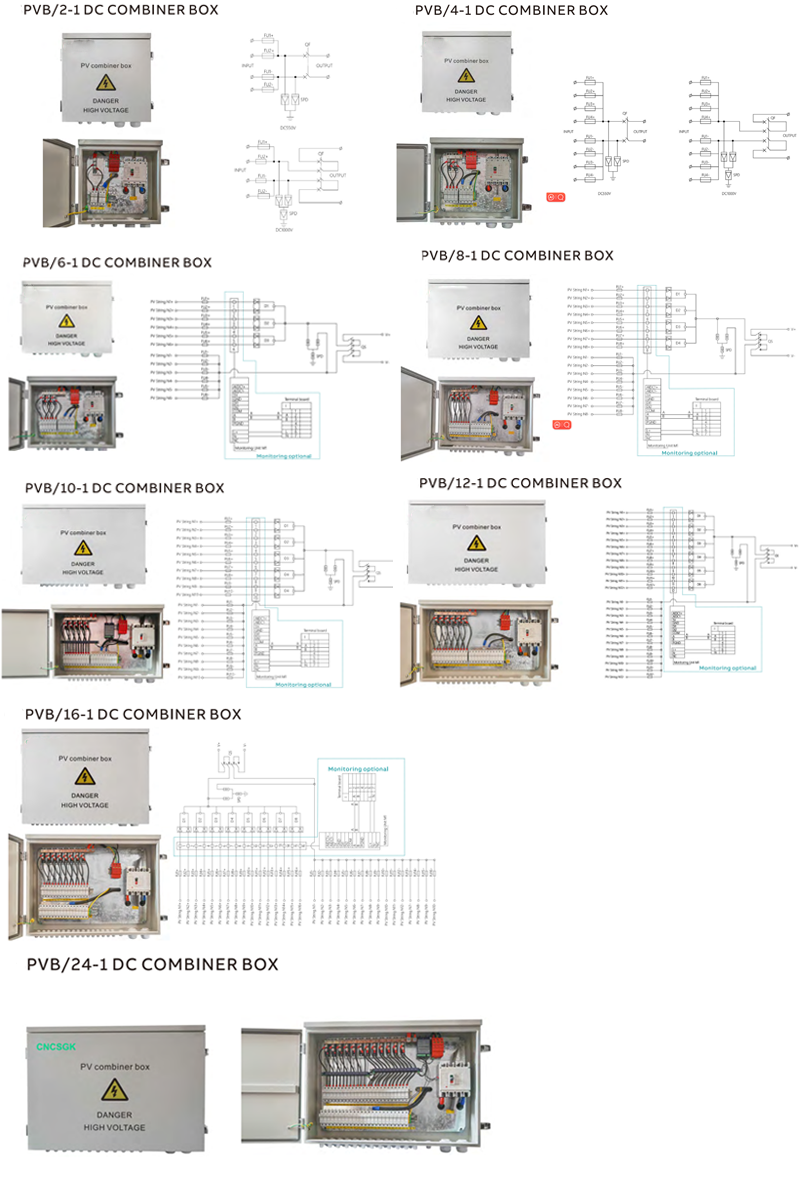

    5. Support 2 input 2 output, 4 input 2 output, etc.
    Please provide us with your requirements
